4.3 inch color text in one machine TM-20MR-430-A 中达优控 YKHMI
Model：
TM-20MR-430-A
Feature：
4.3 inch color text in one machine TM-20MR-430-A 中达优控 YKHMI
Communication port: SLAVE B USB interface (with the print port of the same)
Program download: SLAVE B USB interface (with the print port of the same)
Power input: DC24V
4.3 inch color text in one machine TM-20MR-430-A 中达优控 YKHMIDetails：
Description: 1 button 2.12 X point input 3.8 Y point relay output 4 open hole size: X 112mm 163mm
1 opening size: X 112mm 163mm, size: X 120.7mm X 58.5mm 171.5mm

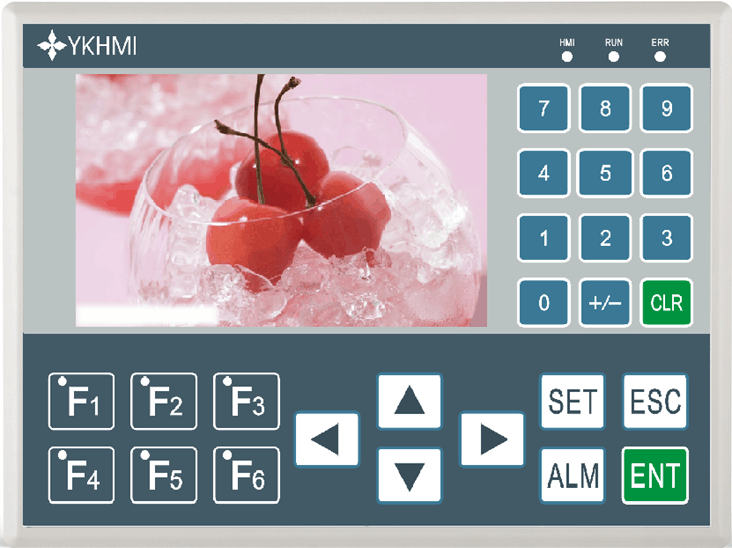

2 keys corresponding to the PLC address
F1:M8081
F2:M8082
F3:M8083
F4:M8084
F5:M8085
F6:M8086
F1 lamp: M8091
F2 lamp: M8092
F3 lamp: M8093
F4 lamp: M8094
F5 lamp: M8095
F6 lamp: M8096
3.D
D0-D199 200 points for general use
D200-D511 312 points to keep the use
D512-D7999 7488 points to keep the use
描述:1.按键 2.12个X点输入 3.8个Y点继电器输出 4.开孔尺寸：163mm X 112mm
1.开孔尺寸：163mm X 112mm,外型尺寸:171.5mm X 120.7mm X 58.5mm
2.按键对应PLC地址
F1:M8081
F2:M8082
F3:M8083
F4:M8084
F5:M8085
F6:M8086
F1灯:M8091
F2灯:M8092
F3灯:M8093
F4灯:M8094
F5灯:M8095
F6灯:M8096
3.D区
D0-D199 200点 一般用
D200-D511 312点 保持用
D512-D7999 7488点 保持用
