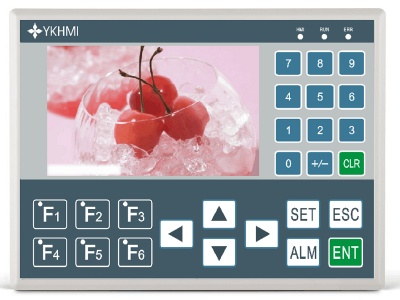

Color text machine TM-20MR-430-B

Communication port: SLAVE B USB interface (with the print port of the same)
Program download: SLAVE B USB interface (with the print port of the same)
Power input: DC24V
Description: 1 button 2.12 X point input 3.8 Y point relay output 4 open hole size: X 112mm 163mm
1 opening size: X 112mm 163mm
2 keys corresponding to the PLC address
F1:M8081
F2:M8082
F3:M8083
F4:M8084
F5:M8085
F6:M8086
F1 lamp: M8091
F2 lamp: M8092
F3 lamp: M8093
F4 lamp: M8094
F5 lamp: M8095
F6 lamp: M8096
